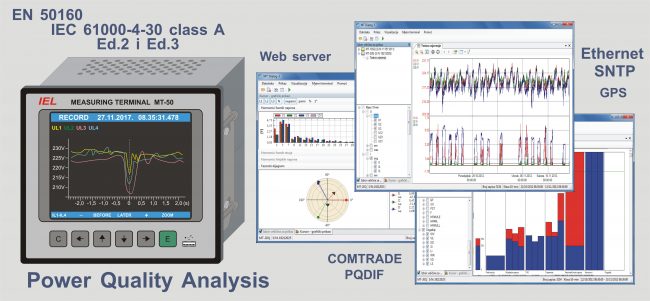

Measuring Terminal MT-50

MT-50 series Measuring Terminal are designed for measuring, monitoring, registering and analyzing energy quality levels in the most complex systems of power generation, distribution and transmission. By quickly sampling the measured current and voltage quantities, the processor calculates the true RMS values of the current, voltage, power, energy, power factor and frequency. In addition to measuring the current electrical power values, the processor calculates the maximum, mean and minimum values of current, voltage, power in the time interval (MD) and registers the specified quantities.

In accordance with Euro stabdard EN 50160 and IEC 61000-4-30 class A, Ed.2 and Ed.3, MT-50 analyzes the quality of the electrical parameters of the grid (harmonic distortion, harmonic content, surge and voltage drop, voltage flicker, asymmetry etc.) in order to control the realization of contractual relations of sale or purchase of electric power. With a large color graphic LCD (5.7 “), information on the status of a particular part of the grid is available locally, and via the embedded Web server information is available remotely. The Measuring Terminal also enables local display of EN 50160. The reports are also available via e-mail. Four communication lines, a range of digital / analog inputs / outputs and MT-DIALOG 3, MT-QUALITY, PQ VISION or Web browsers enable complete grid quality remote control.

[showhide type=”opis” more_text=”Show more” less_text=”Show less”]

  • true RMS measurement of current (4/8), voltage (4/8), frequency, power, power factor, MTU signal, multiple monitors in one housing
  • energy measurement and analysis (EP, EQ) by tariffs
  • measurement of harmonic components of current and voltage (up to the 63rd harmonic) and harmonic distortion, RVC
  • transients analysis – COMTRADE format
  • power quality measurement and analysis in accordance with EN 50160, IEC 61000-4-30 Class A, Ed.2 and Ed.3, IEC 61000-4-7, IEC 61000-4-15, IEC 61000-3-6 / 7
  • registration of peak, mean and minimum values of current, voltage, power, energy with time stamp
  • active and reactive energy registration by tariffs and total energy (up to four tariffs)
  • great flexibility for measurement values recording in SD card with capacity up to 8GB (1 GB per year)
  • 16 programmable digital inputs
  • 8 programmable digital outputs
  • 4 programmable analog inputs and 4 outputs
  • MT-DIALOG 3 for parameterization, MT-50 analysis
  • MT-QUALITY, PQ VISION programs for collecting, analyzing and registering data
  • two RS232 / RS485 configurable ports for communication with measurement, monitoring and control systems and data readings
  • optical communication, embedded Web server
  • 10/100 Base-Tx (Fx) Ethernet port or Ethernet switch for LAN / WAN communication and ITK-20 Info Terminal or other systems
  • data read from the front of the device using a USB disk or computer
